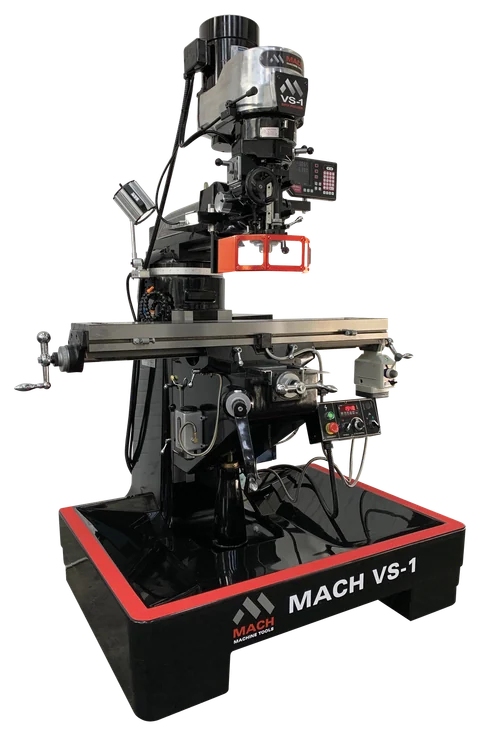

MACH VS-1 SP

The MACH VS-1 SP is a next-generation "super precision" version of the popular VS-1 turret mill, with MACH's familiar gloss black livery and a polished aluminium head. It delivers the high accuracy, speed and reliability expected from a MACH machine, at outstanding value.

It has hand-scraped, hardened and ground dovetail slideways with Turcite B, a hardened and ground table and T-slots, nickel-coated lead screws, and an EVS Yaskawa spindle inverter that gives absolute control of infinitely variable speeds up to 5,000rpm (3hp).

Its accuracy is second to none for a turret mill: for example, spindle taper run-out of 0.003mm against 0.005mm on standard machines.

Highlights

• Hand-scraped, hardened and ground slideways
• Turcite B on the ways, slideways and gibs
• Hardened and ground table top and T-slots
• Nickel-coated lead screws
• EVS Yaskawa spindle inverter and motor, infinitely variable speed
• 2-axis Newall DRO
• Power feed on the X-axis
• Low-voltage LED lighting
• Coolant equipment
• Stand-on composite base splash tray
• Spindle taper run-out: 0.003mm (standard machines 0.005mm)
• Y-axis travel parallelism over 300mm: 0.015mm (standard 0.03mm)
• X-axis parallelism over 500mm: 0.02mm (standard 0.03mm)
• Knee travel to table top: 0.01mm (standard 0.02mm)
• Spindle sweep to table over 300mm: 0.015mm (standard 0.02mm)
• Ram movement parallel to table: 0.015mm (standard 0.02mm)
