MACH 280 GSHE / GSHT
Band saw
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description

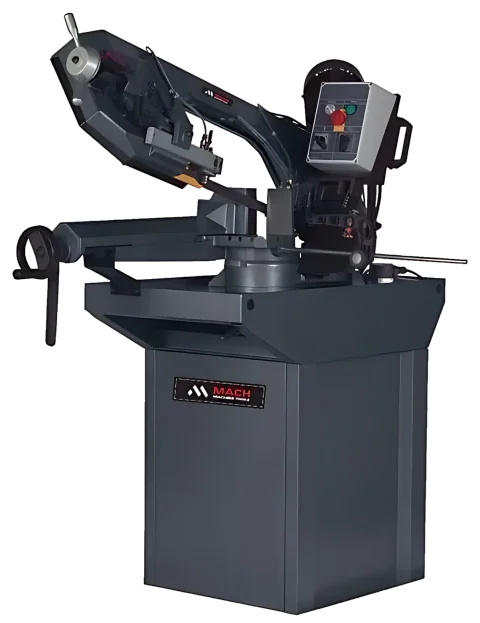

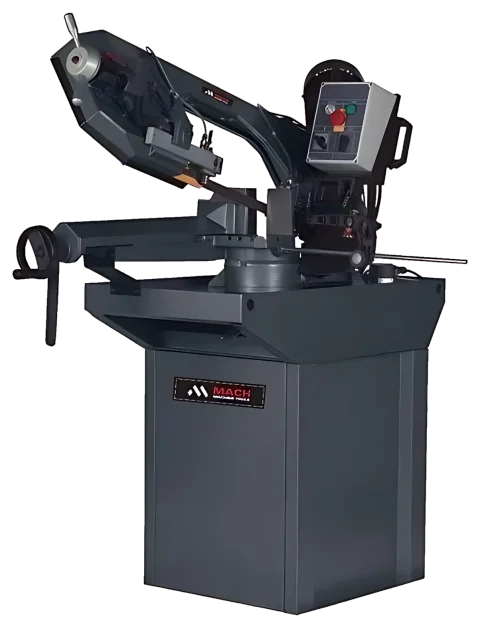

The MACH 280 GSHE / GSHT is one of MACH's high-capability, high-capacity band saws, with mitring from 0 to 60°.
Highlights
- Easy-to-use control unit for speed and feed adjustments
- Mitring assembly for angle cutting
- Automatic and manual hydraulic feed units available
- Blade tension limit switches for fast, accurate tensioning
- Quick-release vices for fast, flexible workpiece clamping
- Built-in coolant
Specifications
- Saw blade
- 2450 × 27 × 0.9mm
- Blade speed
- 70m/min (GSHE), 35–70m/min (GSHT)
- Round capacity at 0° / 45° / 60°
- 225mm / 140mm / 90mm
- Square capacity at 0° / 45° / 60°
- 200 × 200mm / 140 × 140mm / 90 × 90mm
- Machine dimensions
- 1200 × 510 × 1460mm
Downloads
Brochures and manuals for this machine are coming soon. Resources
