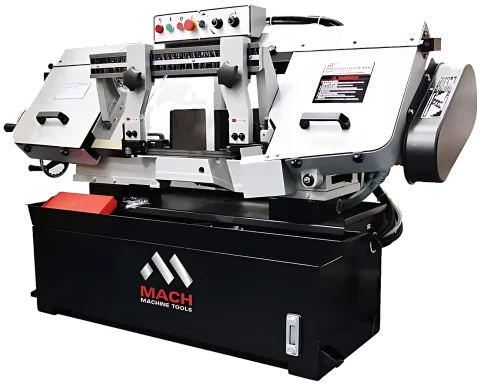

MACH 250A-SB
Band saw
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description
The MACH 250A-SB is one of MACH's high-capability, high-capacity band saws.
Highlights
- Easy-to-use control unit for speed and feed adjustments
- Mitring assembly for angle cutting
- Automatic and manual hydraulic feed units available
- Blade tension limit switches for fast, accurate tensioning
- Quick-release vices for fast, flexible workpiece clamping
- Built-in coolant
Specifications
- Round capacity at 90°
- 250mm
- Round capacity at 45°
- 190mm
- Rectangular capacity at 90°
- 200 × 450mm
- Rectangular capacity at 45°
- 250 × 190mm
- Motor
- 2hp
- Blade speed
- 4-step pulley: 25 / 40 / 51 / 71m/min
- Saw blade
- 27 × 0.9 × 3300mm
- Floor space
- 1750 × 600mm
- Machine weight
- 360kg
Downloads
Brochures and manuals for this machine are coming soon. Resources
