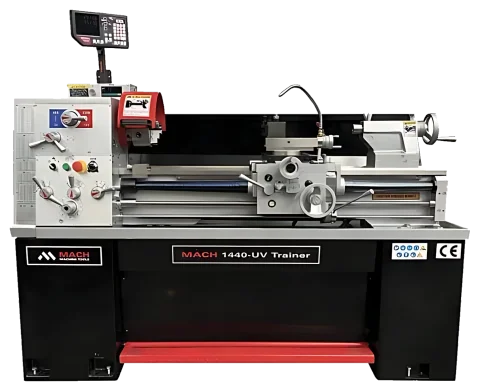

MACH 1440-V Trainer
Trainer lathe
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description
The MACH 1440-V Trainer gives toolrooms and educational organisations a compact, reliable, high-performance turning solution, without compromising on quality, productivity or value.
It has infinitely variable spindle speed and a universal gearbox, so it machines metric and imperial threads without changing the gear train. It comes with a 2.2kW spindle, a tailstock and a wide range of technology and accessories as standard.
Highlights
- Infinitely variable spindle speed
- Universal gearbox: metric and imperial threads without changing the gear train
- Consistently high cutting performance
- Wide range of technology and accessories supplied as standard
Specifications
- Spindle motor
- 2.2kW
- Max. spindle speed
- 2,200rpm
- Spindle bore
- 38mm
- Swing over bed
- 356mm dia
- Swing over cross slide
- 220mm dia
- Centre height
- 178mm
- Distance between centres
- 1000mm
- Bed width
- 206mm
- Bed length
- 1680mm
- Cross slide travel
- 167mm
- Tailstock taper
- MT3
- Tailstock quill
- 45mm dia
- Coolant pump
- 0.175kW
- Machine weight
- 700kg
- Floor space
- L × W: 1750 × 765mm
Downloads
Brochures and manuals for this machine are coming soon. Resources
