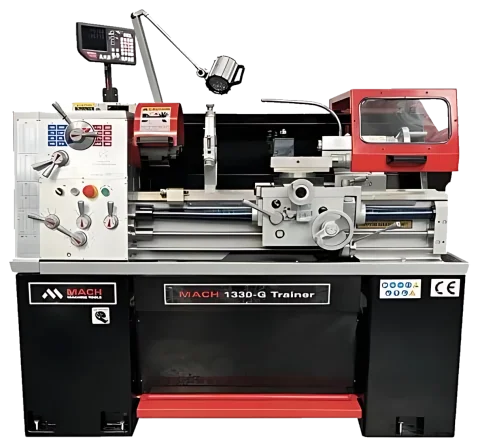

MACH L1330G
Trainer lathe
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description
The MACH L1330G gives toolrooms and educational organisations a compact, reliable, high-performance turning solution, without compromising on quality, productivity or value.
It has an eight-speed gearbox powered by a twin-speed motor, a 2.2kW spindle and a tailstock, and comes with a wide range of technology and accessories as standard.
Highlights
- Compact and rigidly built for training workshops
- Eight-speed gearbox with a twin-speed motor
- Consistently high cutting performance
- Wide range of technology and accessories supplied as standard
Specifications
- Spindle motor
- 2.2kW
- Max. spindle speed
- 1,800rpm
- Spindle bore
- 38mm
- Swing over bed
- 330mm dia
- Swing over cross slide
- 195mm dia
- Centre height
- 165mm
- Distance between centres
- 750mm
- Bed width
- 206mm
- Bed length
- 1430mm
- Cross slide travel
- 157mm
- Tailstock taper
- MT3
- Tailstock quill
- 45mm dia
- Coolant pump
- 0.175kW
- Machine weight
- 650kg
- Floor space
- L × W: 1700 × 765mm
