About this machine

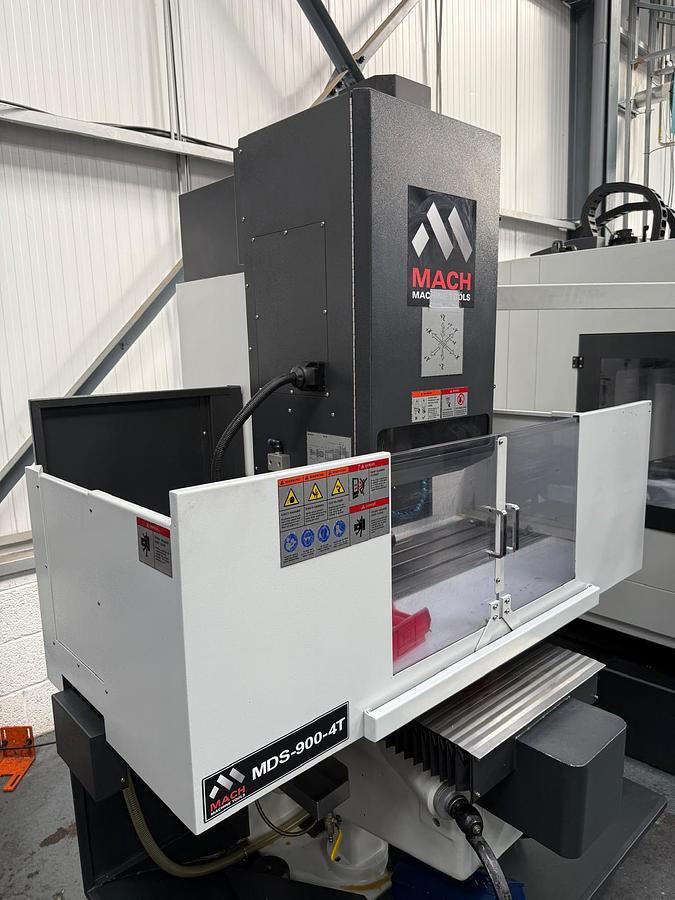

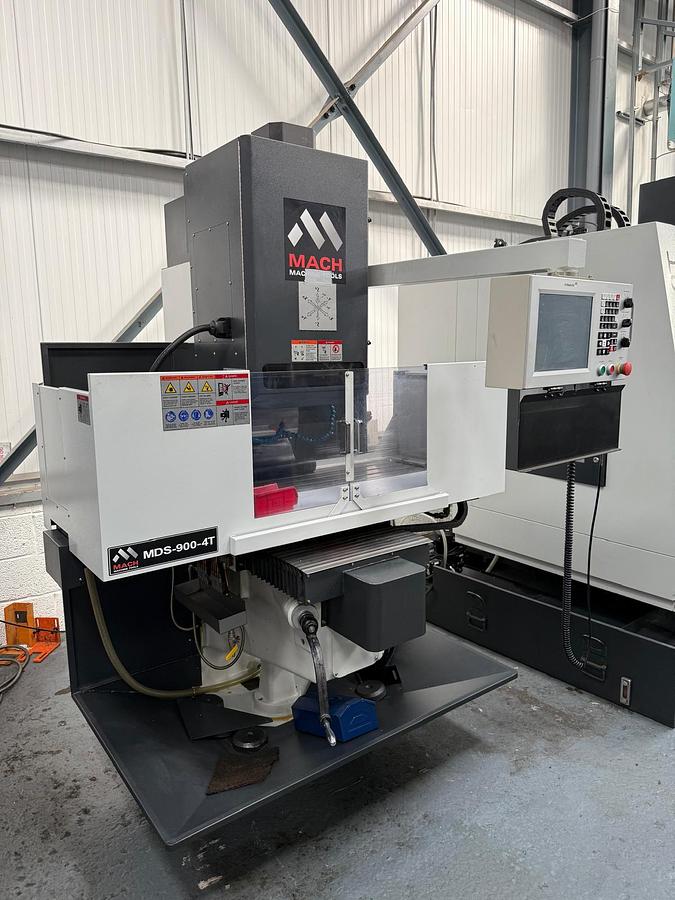

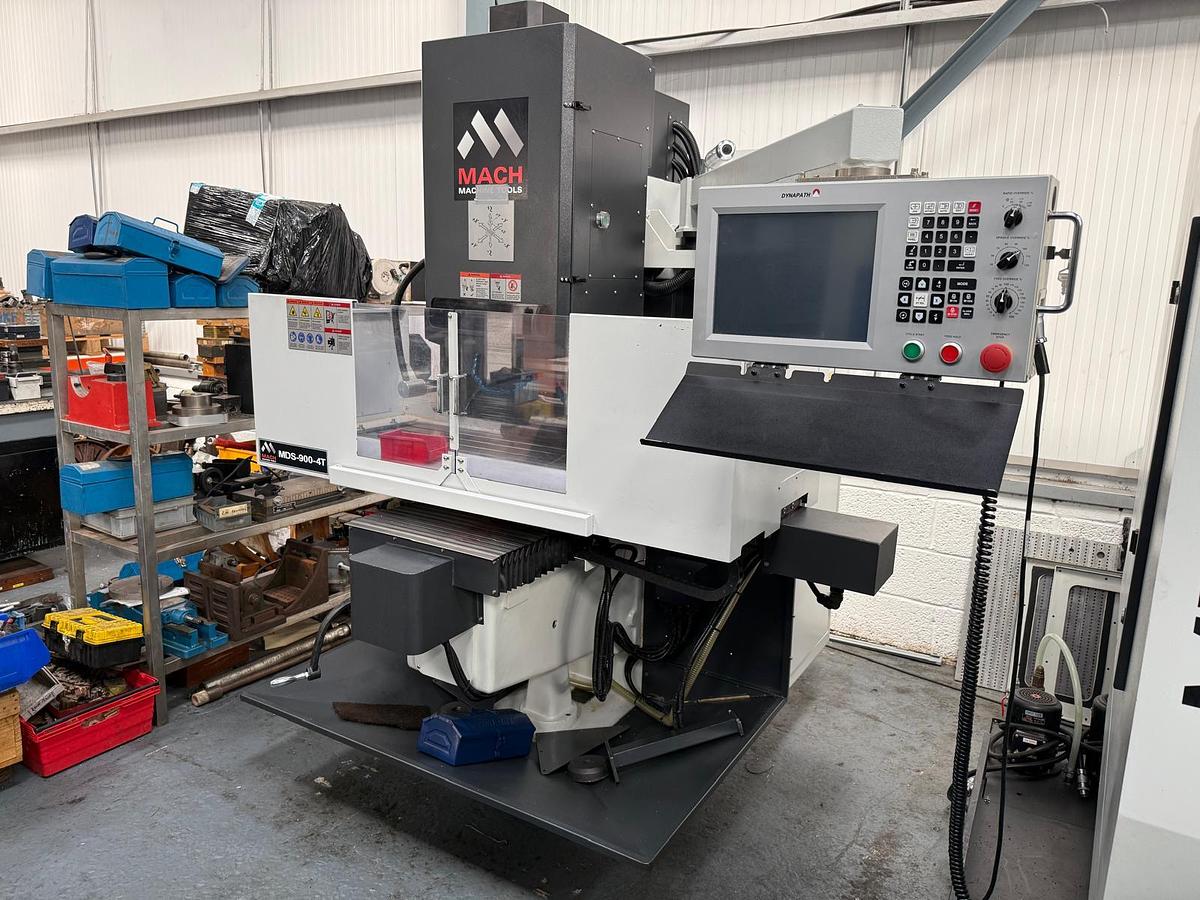

Used 2022 MACH MDS 900-4T CNC/Manual Knee Mill. Supplied with DynaPath WinDelta 3-Axis control, Yaskawa drives, integrated 4-tool position ATC and 5,000 RPM BT40 direct-drive spindle.
Specifications
- X Axis
- 900 mm
- Y Axis
- 340 mm
- Z Axis
- 120 mm
- Table Length
- 1,470 mm
- Table Width
- 320 mm
- Max Weight on Table
- 220 kg
- Spindle Taper
- BT40
- Spindle Speed
- 50 - 5,000 rpm
- Spindle Power
- 3.75 kW
- Drive System
- Direct Drive
- Control Type

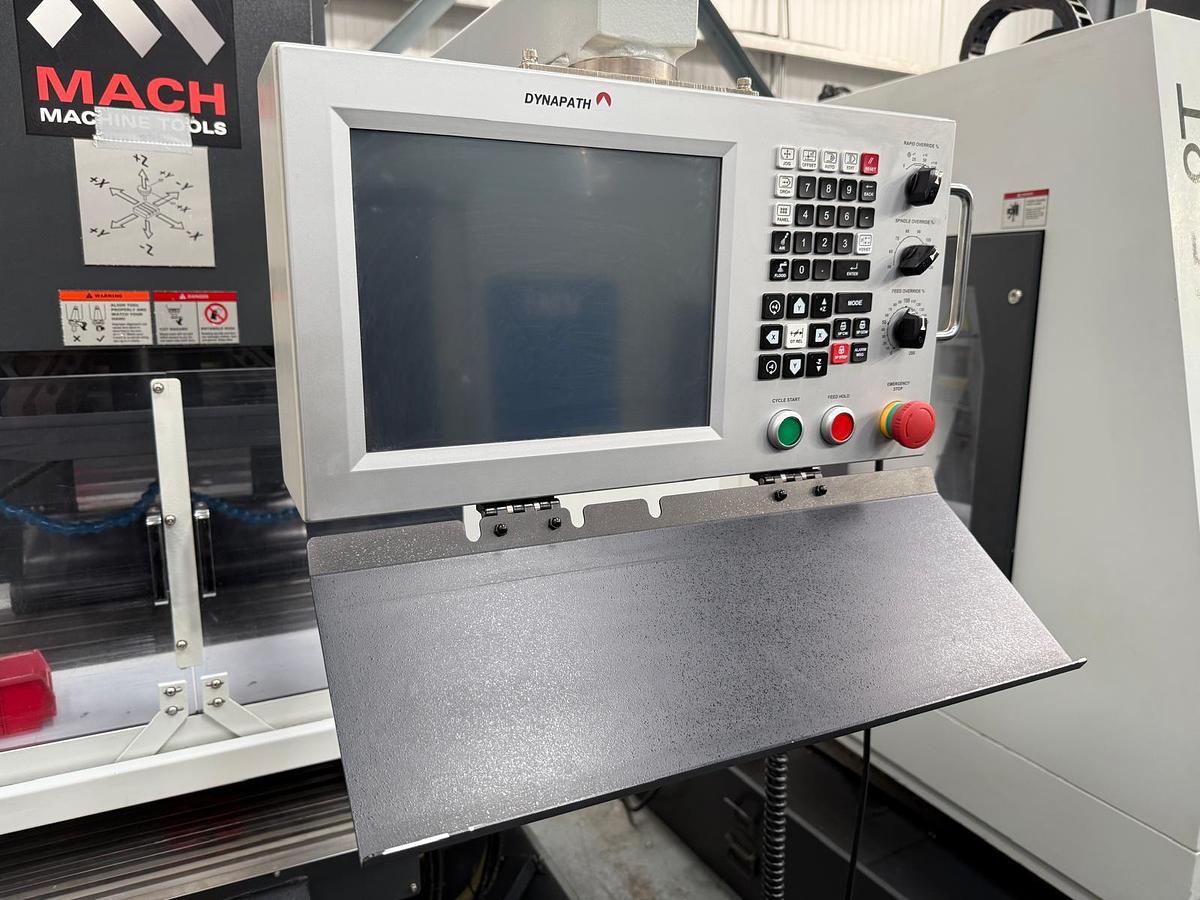

- DynaPath WinDelta
- User Interface
- 12.1" LCD Touchscreen
- Axes
- 3-Axis
- Memory
- 8 GB
- Look Ahead
- 1,000 Blocks
- Programming
- Conversational, DXF & ISO/EIA G-Code
- Interfaces
- USB, Ethernet & Wireless
- Tool Changer Capacity
- 4 Tool Positions
- Tool Changer Positioning
- Around Spindle
- Operating Modes
- Manual, Semi-Automatic & Fully Automatic
- Remote Service
- DynaPath WiFi Remote 24/7 Support
- Application
- Toolrooms & Machine Shops
What's included
- 4 position tool changer
- Conversational 3 axis control
- MPG handwheel
