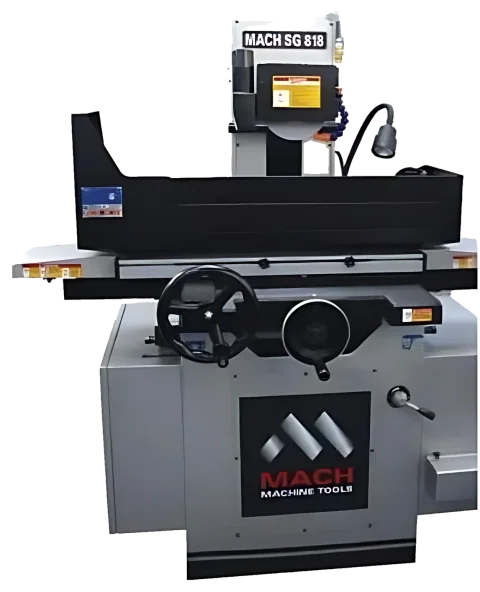

MACH SG818 Auto
Automatic surface grinder
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description
The MACH SG818 Auto is part of MACH's range of high-performance, reliable and durable surface grinders, supplied with everything you need as standard to get working.
Highlights
- AC motor rapid up and down
- Electromagnetic chuck 8" × 18"
- Chuck control with demagnetiser
- Coolant and dust unit
- Spare wheel flange
- Micro cross-feed and downfeed
- Operation manual
- High-quality honeycomb-design ribbed cast iron column for excellent vibration absorption and damping, for both high-precision and heavy-duty grinding
- Vertical in-feed of 0.001mm for precise control
- Cross-feed ball screw driven by a brushless DC motor with two speeds, for rough and finish grinding
- Saddle and table on precision hand-scraped V and flat ways coated with Turcite-B
- Automatic programmable lubrication of the guideways for smooth, stable movement and long-lasting precision
- Fully CE compliant, with CE certification
Specifications
- Table size
- 203 × 460mm
- Max. grinding length
- 480mm
- Max. distance from table surface to spindle centreline
- 460mm
- Magnetic chuck
- 200 × 450mm (8" × 18")
- Max. manual table travel
- 250mm
- Max. auto table travel
- 235mm
- MPG per graduation
- 0.02mm
- Rapid travel (approx.)
- 150mm/min
- Slow travel (approx.)
- 6mm/min
- Grinding spindle speed
- 2,850rpm (50Hz) / 3,450rpm (60Hz)
- Spindle motor
- 2hp
- Grinding wheel
- 203mm dia
- Hydraulic motor
- 1hp (6A)
- Cross-feed motor
- 400W
- Elevating motor
- 60W
- Machine dimensions
- 1810 × 1285 × 1680mm
Downloads
Brochures and manuals for this machine are coming soon. Resources
