MACH SB 40
Geared head drilling machine
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description

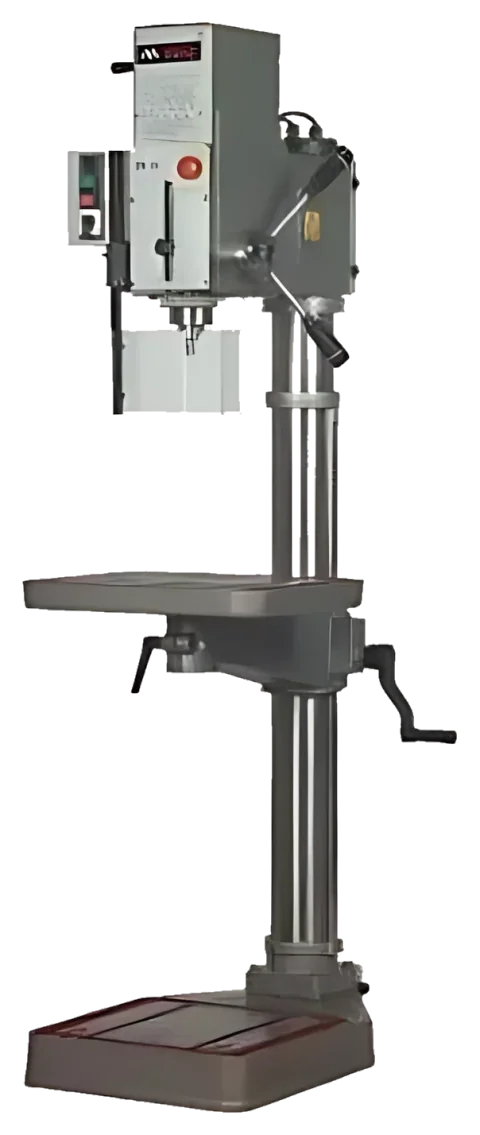

The MACH SB 40 is one of MACH's proven high-performance geared head drilling machines.
Highlights
- Power down feed
- Height-adjustable table for increased flexibility
- Smooth and quiet operation
- Powerful 1.5hp motor
- Optional coolant system
- Optional auto feed and auto tapping
- CE micro-switch spindle safety guarding
Specifications
- Drilling capacity
- 42mm
- Drilling depth
- 150mm
- Tapping capacity
- M16
- Table size
- 405 × 505mm
- Spindle speed
- 75–3,140rpm
- Machine height
- 1800mm
- Machine weight
- 295kg
