Specifications
- Swing Over Bed
- 490 mm (19.29")
- Swing Over Cross Slide
- 240 mm (9.44")
- Distance Between Centres
- 1,050 mm (41.33")
- Bed Width
- 300 mm (11.81")
- X-Axis Travel
- 230 mm (9.06")
- Z-Axis Travel
- 820 mm (32.28")
- Spindle Bore
- 54 mm (2.12")
- Spindle Speed Range
- 400 – 3,500 RPM
- Chuck
- 8" manual 3-jaw chuck; 10" manual 4-jaw chuck
- Spindle Taper
- MT6
- Spindle Nose
- A2-6
- Main Spindle Motor
- 7.5 kW (10 HP)
- Rapid Traverse (X/Z)
- 5 / 5 m/min (197 / 197 IPM)
- Axis Drive Motors
- 2.6 HP
- Quill Diameter
- 52 mm (2.17")
- Taper
- MT4
- Quill Travel
- 140 mm (5.51")

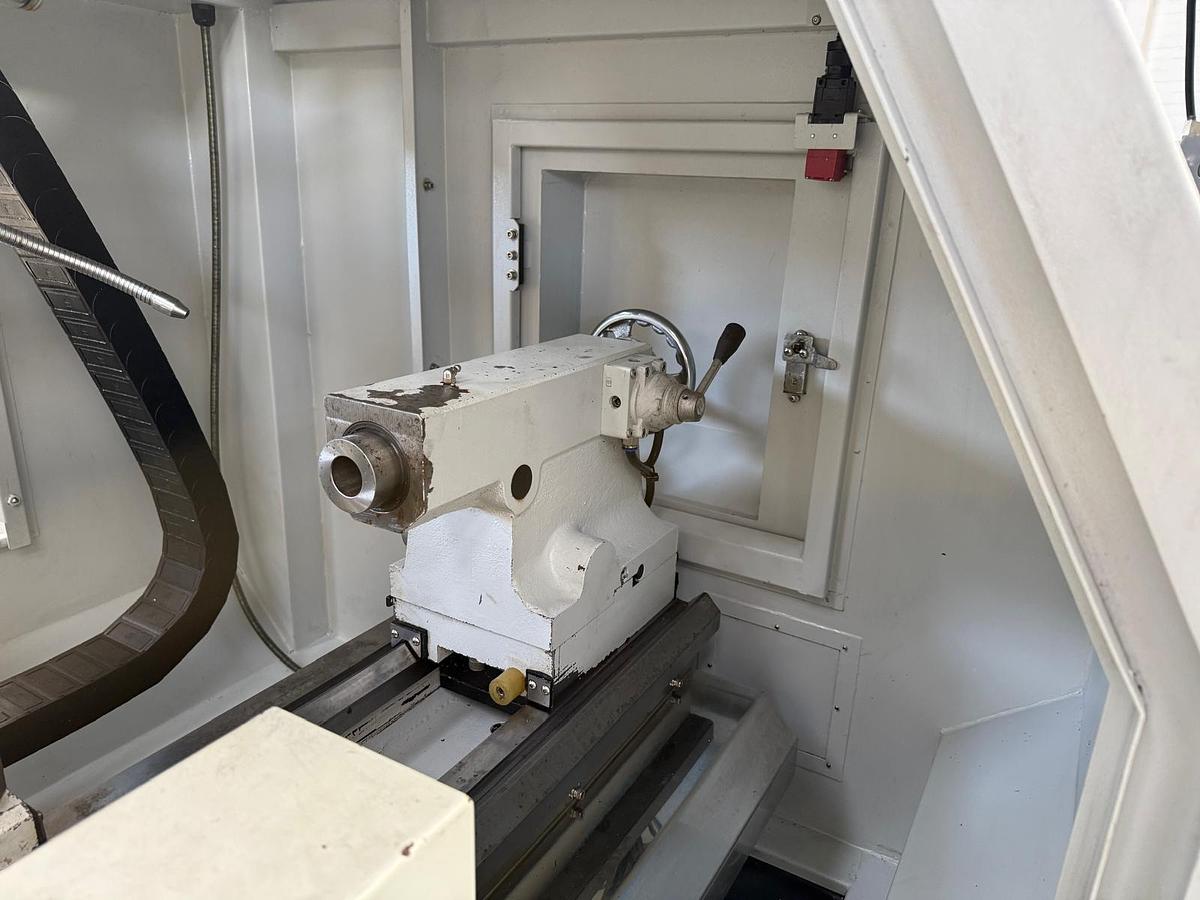

- Tailstock Type
- Manual
- Repeatability (X/Z)
- 0.005 / 0.006 mm
- Positioning Accuracy (X/Z)
- 0.010 / 0.016 mm
- Turning Accuracy
- 0.003 mm
- Tooling

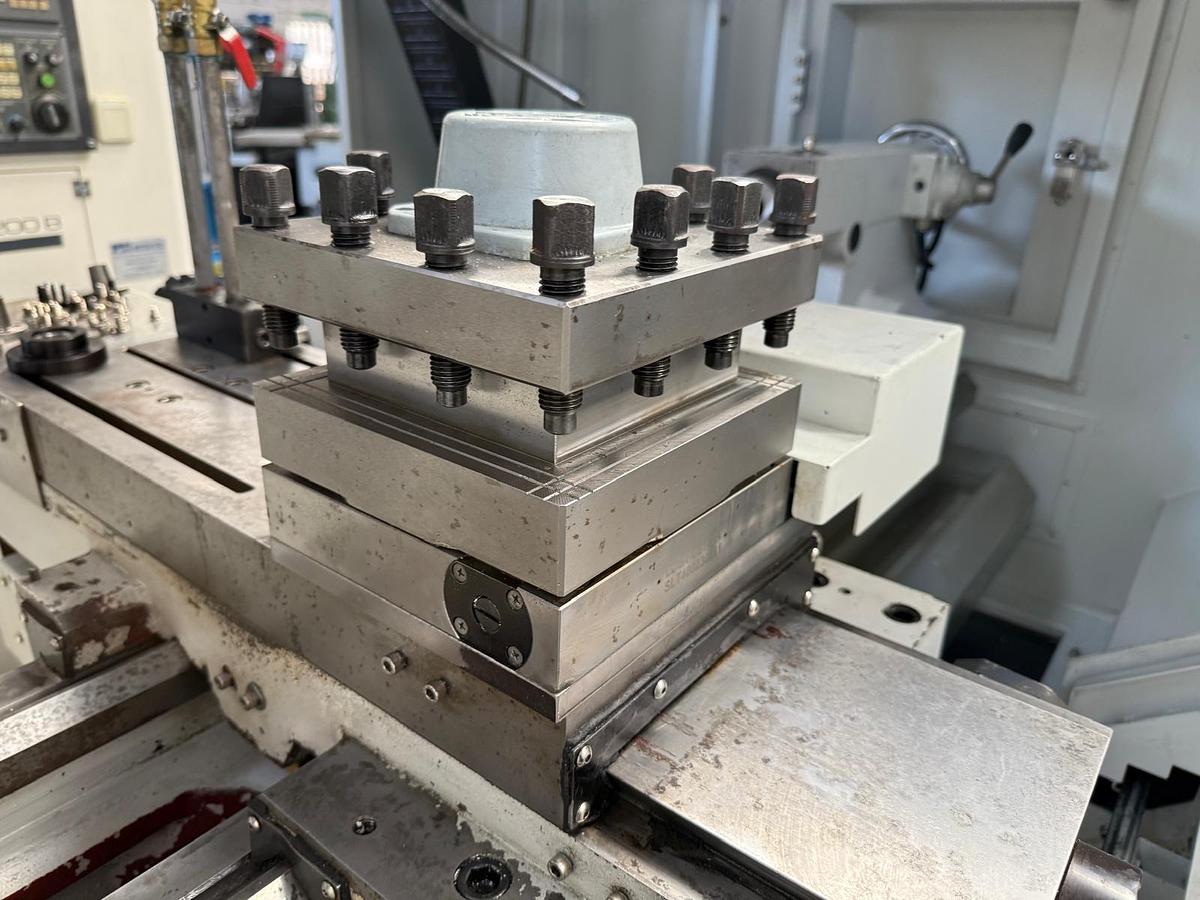

- 4-Station Turret
- Dimensions (L x W x H)
- 2,650 x 1,600 x 1,650 mm
- Machine Weight
- 2,250 kg
- Standard Equipment

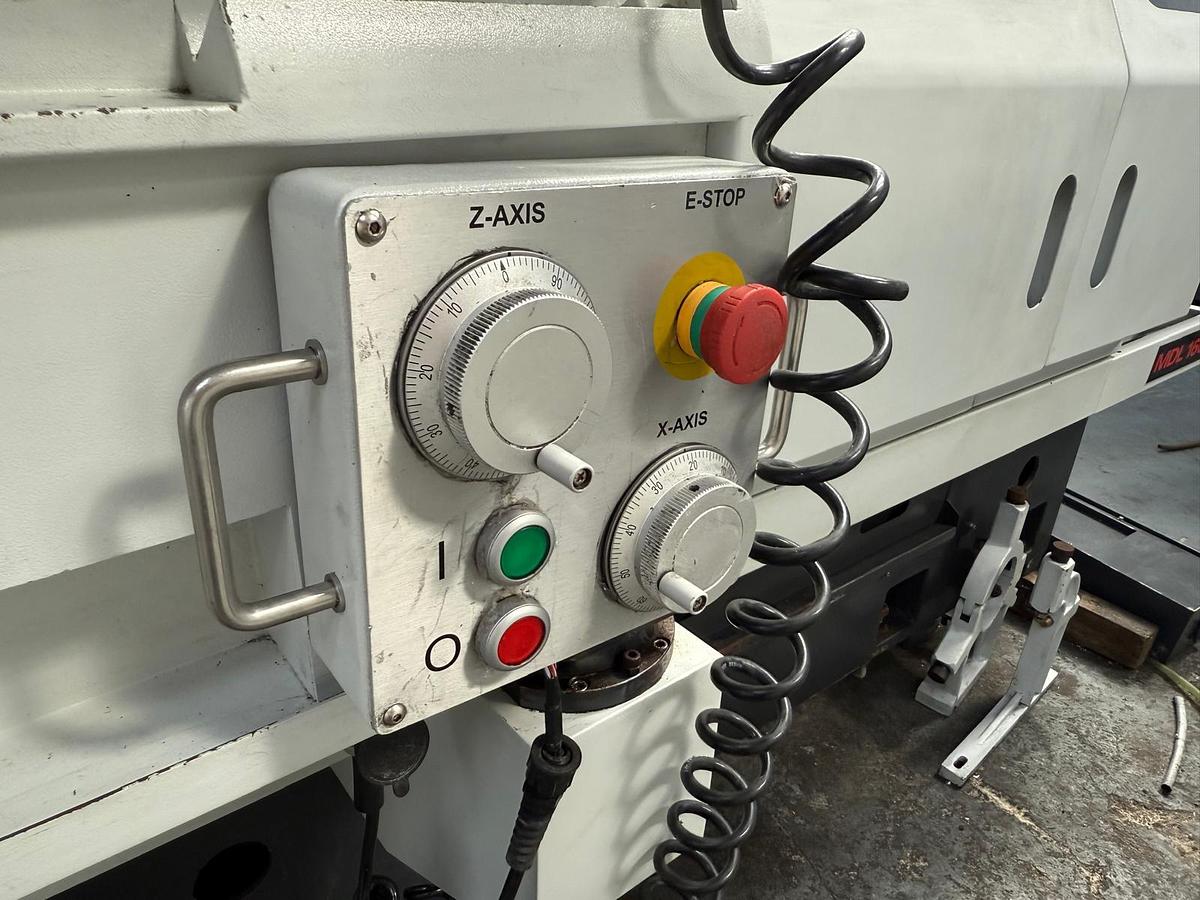

- 3-Jaw; Electronic Handwheels; Fully Enclosed Splash Guard; Coolant System; Drill Chuck and Taper Adaptor; Automatic Lubrication System; Fixed and Travelling Steadies; Work Lamp; Heat Exchanged Electrical Cabinet
- CNC Control Features

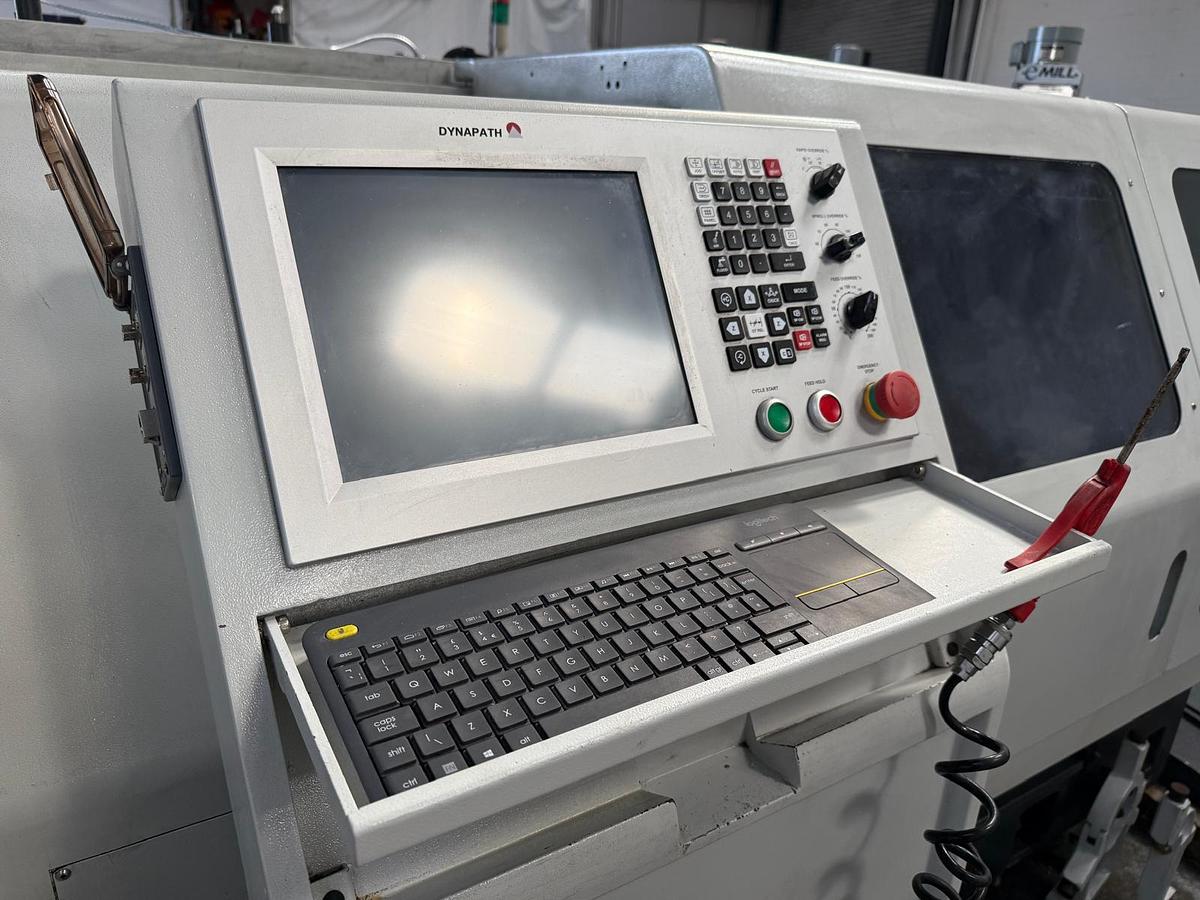

- 12.1" LCD Colour Touch Screen; Conversational Programming; ISO / G-Code Programming; Built-In Wi-Fi for Remote Diagnostics and Support; USB & Network Connectivity; 54 Work Offsets; Tool Length, Radius and Wear Offsets; Manual DRO Capability; Corner Accuracy Control; Advanced DXF Reader / Creator with Contour Selection; Program Retrace Function; Program Editing with Cut, Copy and Paste; Background Editing; Toolpath Verification; 3D Solid Model Simulation; Suggested Speed and Feed Database; Roughing Cycles for Facing, Turning, Tapering and Threading; Internal and External Threading Cycles; Grooving and Parting Functions; Single Block Execution; 8 GB Program Storage; Condition
